Middle Laser Engraving Cutting Machine
Middle Laser Engraving Cutting Machine

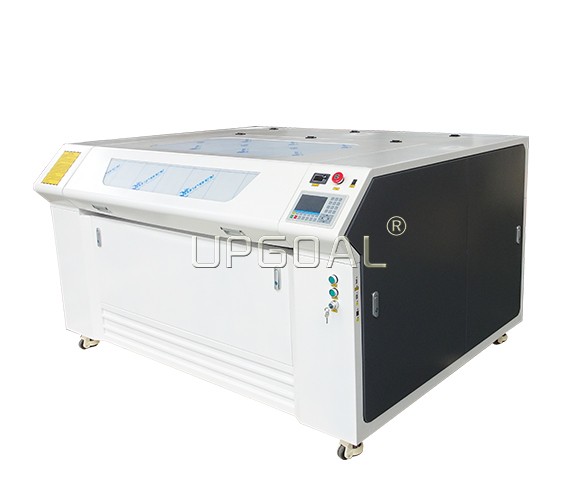

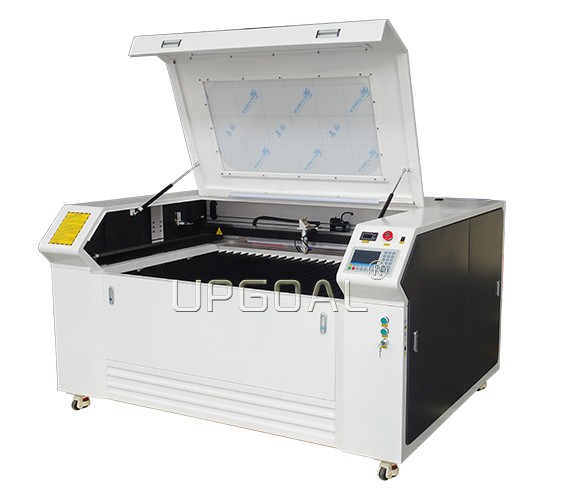

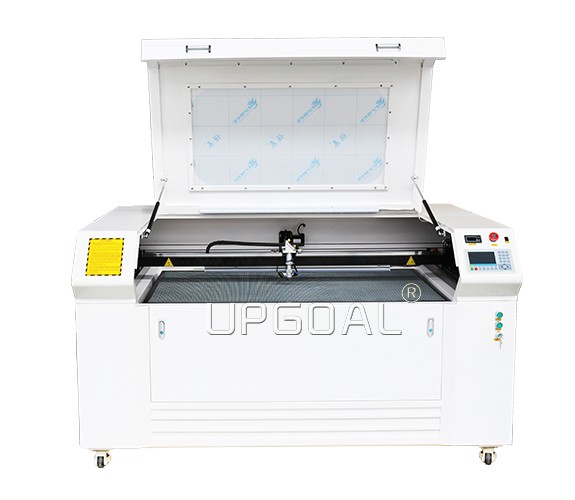

Hot Sale 130W Co2 Laser Cutting Engraving Machine 1300*900mm

Brief Introduction:

Model: UG-1390L
1300*900mm
Reci W6 130W Co2 laser tube
RuiDa RDC 6445S control system
Industrial chiller CW-5200 cooling
With air filter

INQUIRY NOW

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

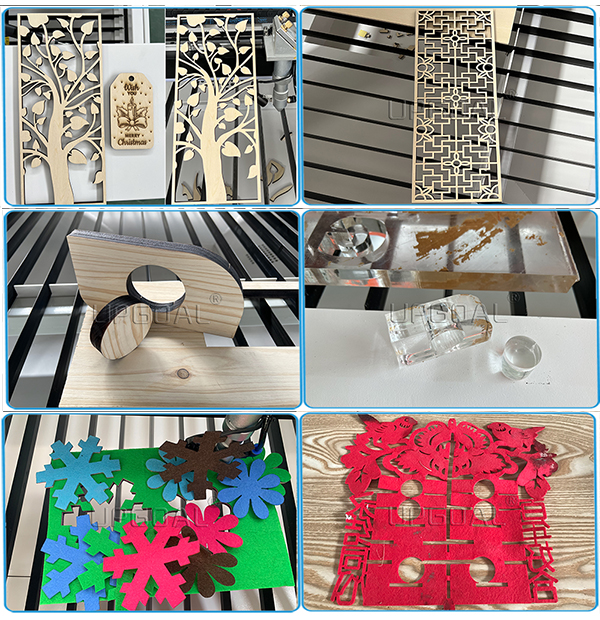

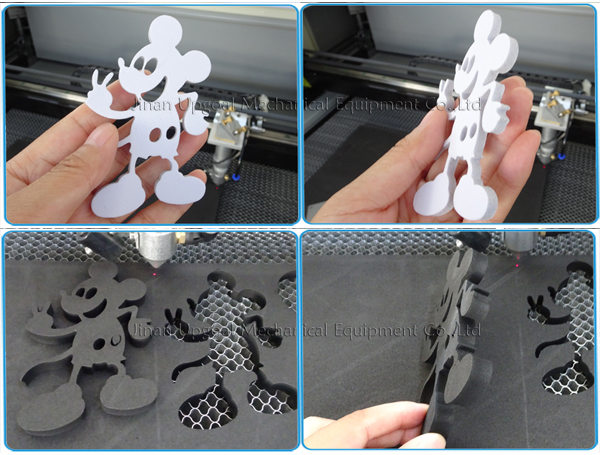

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc.


Materials Can work with: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


Features

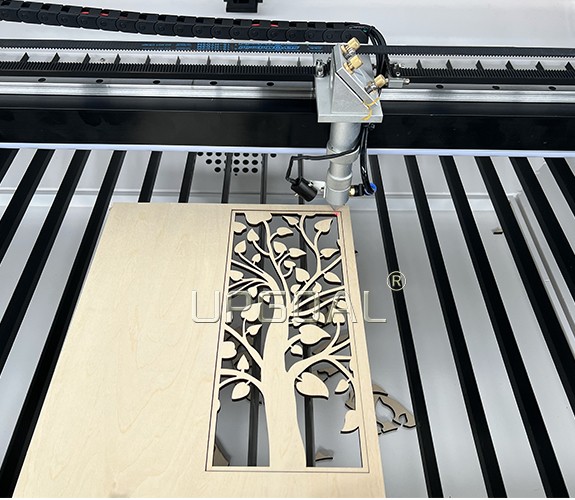

Laser Head

Newly design, More in according with mechanical engineering. Safe and durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W6 130W Co2 laser tube,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 200mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

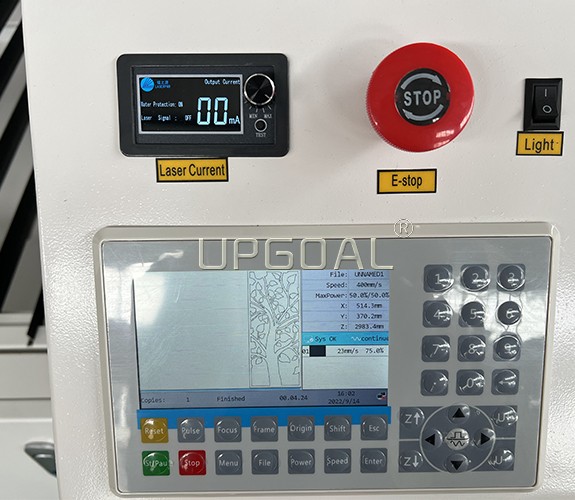

Operation System

Advanced USB port RuIDa RDC 6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.


Cooling System

Industrial chiller CW-5000(S&A), ensuring the laser tube long time continuous working.


Air filtration system

Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.


Effective working area

1300*900mm/4*8feet

Laser Type

Co2 sealed-off laser tube

Laser tube power

W6series, Reci, Beijing

(Rated power: 130W, max. Power: 160W)

Working table

Honey comb and knife strip, double working table

Lifting table

Automatic up and down(200mm)

Driver mode

3 phases stepper motor and Driver, Yako/Leadshine brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

3M Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa RDC6445S

Control software

RDWorks V8

Wifi connection

Yes

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-5200 cooling(S&A)

Water protection system

Yes

Focus

Auto focus

Blow-off system

Air pump 550W and air blower 160W

Air filtration system

Air filter

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc

Voltage

AC 220V/110V, 50/60Hz, single phase

Certificate

CE/FDA
